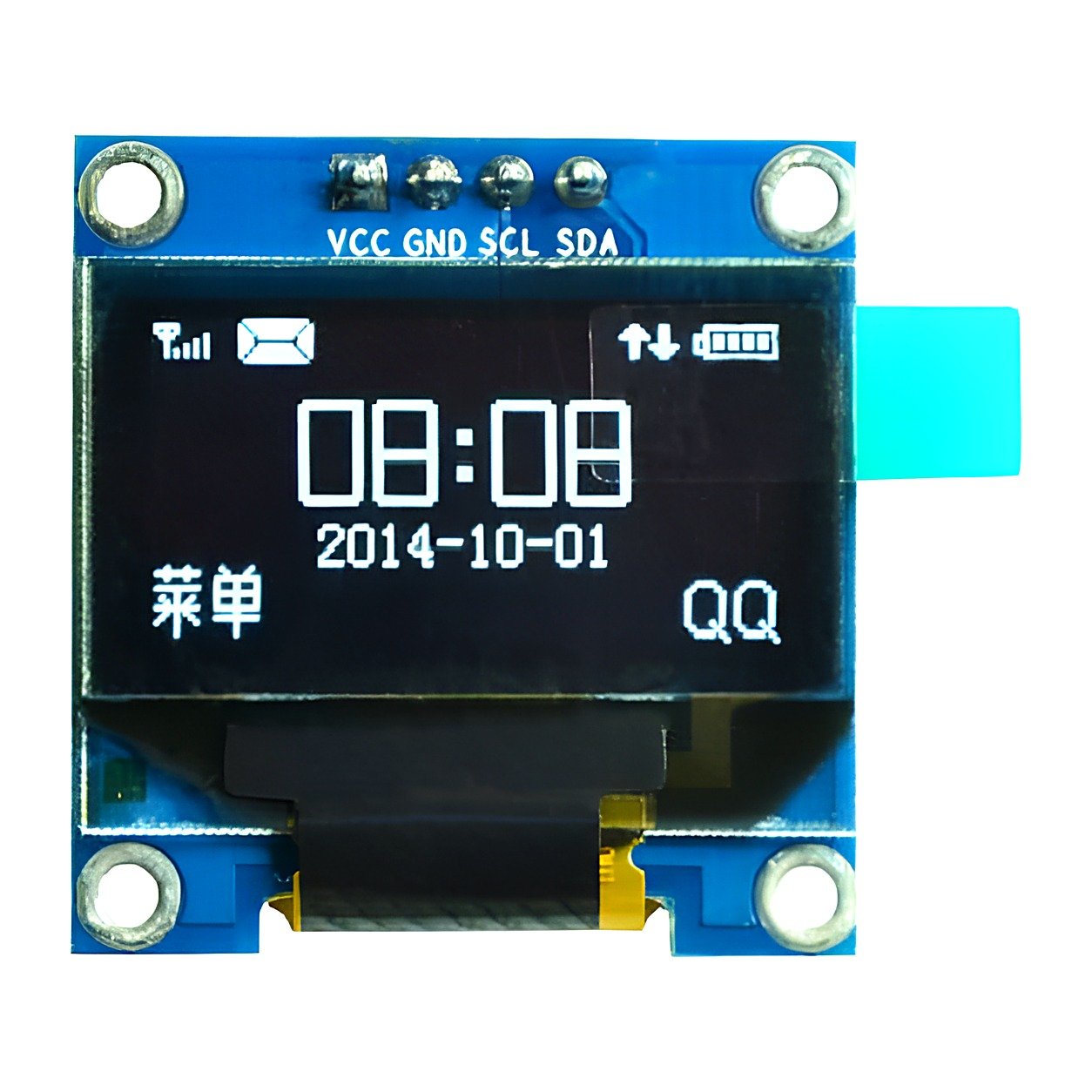

0.96 inch OLED Display Module I2C 128×64 Blue
₹259
0.96 inch 128×64 blue OLED display with the SSD1306 driver and a simple 4-pin I2C interface – crisp, high-contrast text and graphics with no backlight needed.
Availability: ✓ In Stock
Availability: 100 in stock
🛒 Go to Cart| Qty | Unit Price (INR) | Ext. Price |
|---|---|---|
| 1 | ₹259 | ₹259 |
| 10 | — | — |
| 100 | — | — |
Product Specifications
Display Size: 0.96 inch
Resolution: 128 x 64
Driver IC: SSD1306
Interface: I2C (4-pin: VCC, GND, SCL, SDA)
Display Colour: Blue
Operating Voltage: 3.3-5V
I2C Address: 0x3C (typical)
Product Details
0.96 inch 128×64 blue OLED display with the SSD1306 driver and a simple 4-pin I2C interface – crisp, high-contrast text and graphics with no backlight needed.
Key Features
- 128 x 64 pixel monochrome OLED, blue
- SSD1306 driver – supported by Adafruit SSD1306 and U8g2 libraries
- Only 2 data wires (SDA, SCL) over I2C
- Wide viewing angle and very low power consumption
Typical Applications
- Sensor readouts and status screens
- Clocks, meters and mini dashboards
- Wearables and portable gadgets
