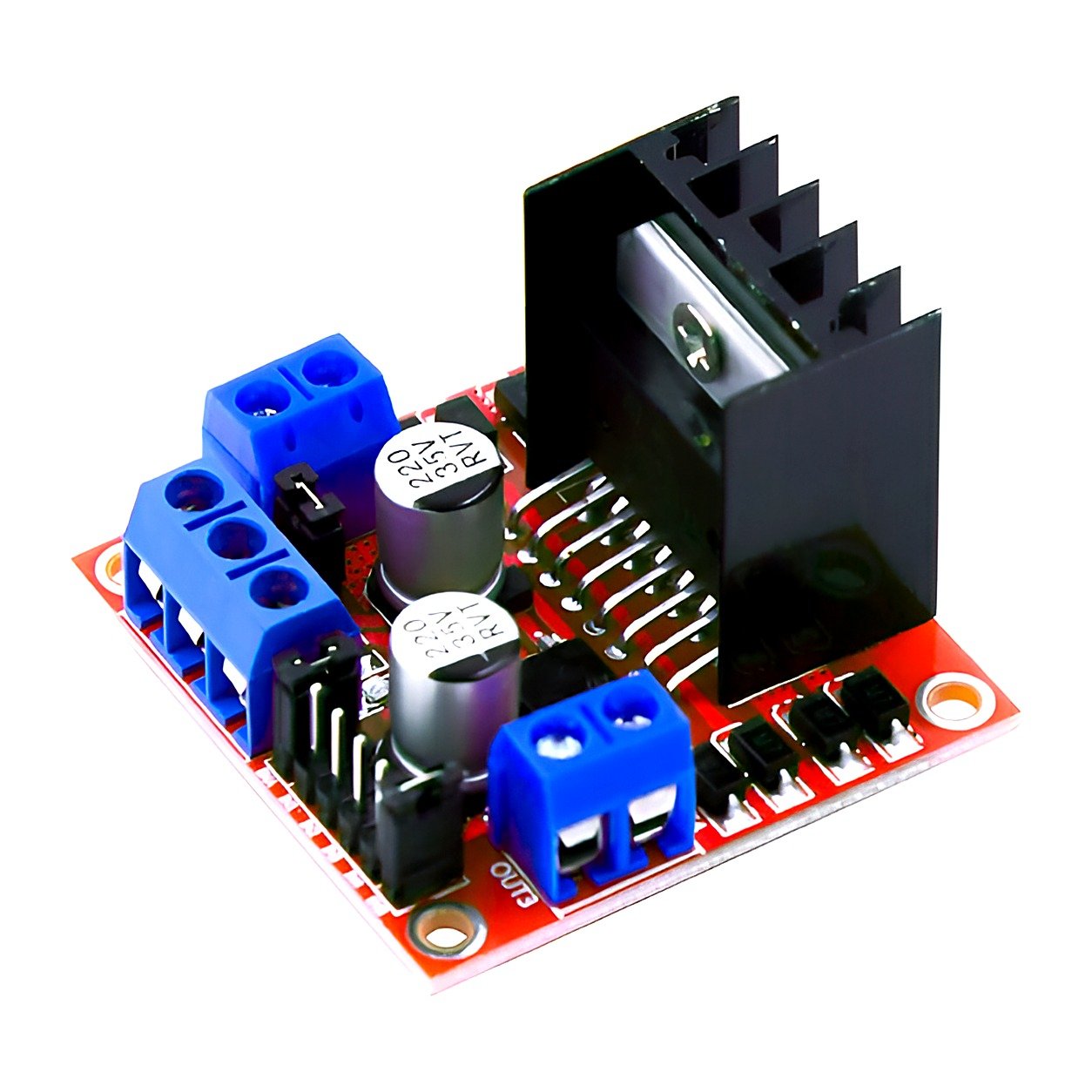

L298N Dual Motor Driver Module (Red)
₹129
L298N dual H-bridge motor driver module – control the speed and direction of two DC motors or one stepper motor from any microcontroller.
Availability: ✓ In Stock
Availability: 100 in stock
🛒 Go to Cart| Qty | Unit Price (INR) | Ext. Price |
|---|---|---|
| 1 | ₹129 | ₹129 |
| 10 | — | — |
| 100 | — | — |
Product Specifications
Driver IC: L298N
Motor Supply Voltage: 5-35V DC
Logic Voltage: 5V
Max Current: 2A per channel (peak)
Channels: 2
Control Pins: ENA, IN1, IN2, IN3, IN4, ENB
Product Details
L298N dual H-bridge motor driver module – control the speed and direction of two DC motors or one stepper motor from any microcontroller.
Key Features
- Dual H-bridge L298N driver with large heatsink
- Drives 2 DC motors or 1 two-phase stepper
- Onboard 5V regulator can power your logic (jumper selectable)
- Screw terminals for motors and power
Typical Applications
- Robot cars and rovers
- Conveyor and actuator control
- Stepper motor experiments
