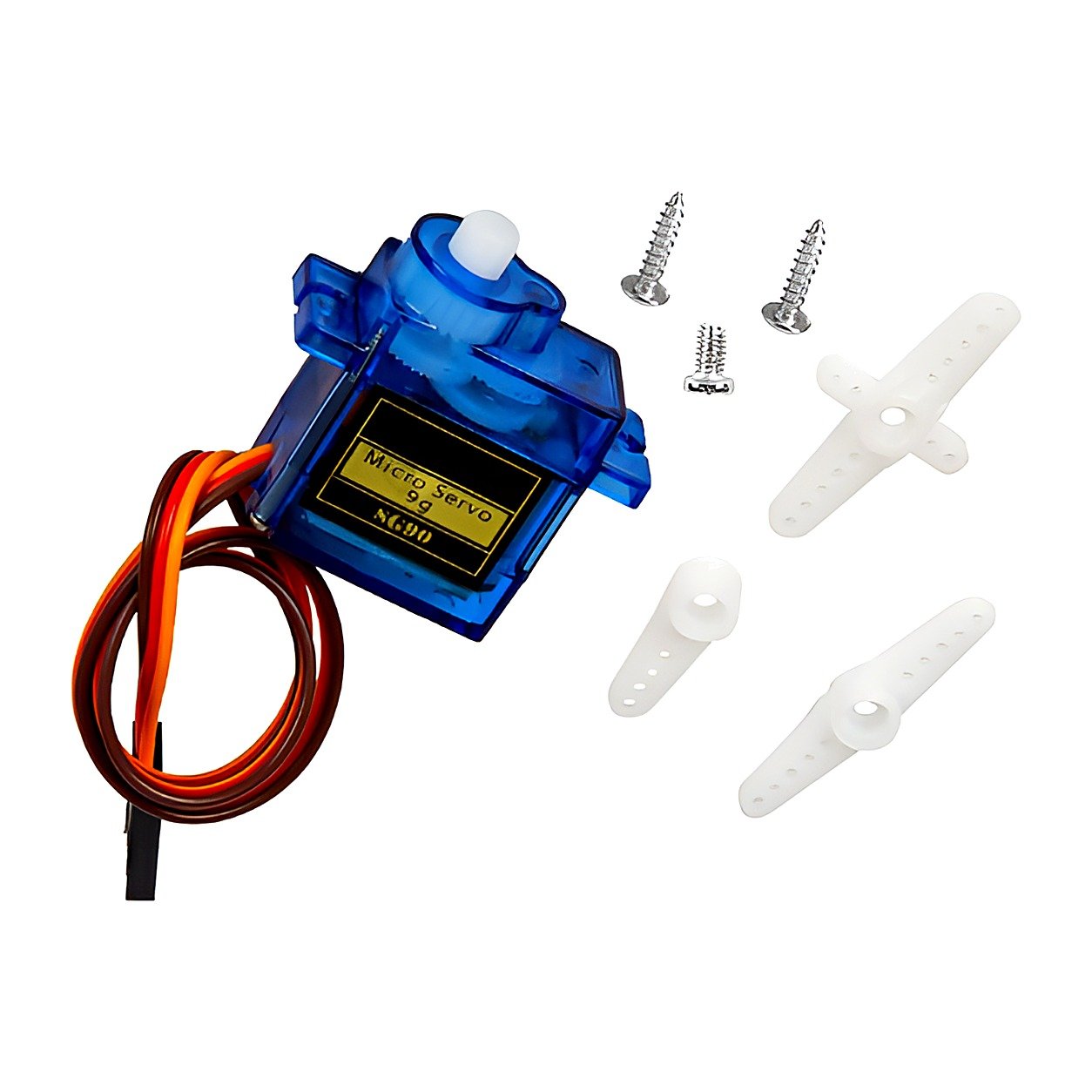

SG90 9g Micro Servo Motor 360° Continuous Rotation
₹140
SG90 9g micro servo modified for 360° continuous rotation – PWM sets speed and direction instead of position, ideal for small wheeled robots.
Availability: ✓ In Stock
Availability: 15 in stock
🛒 Go to Cart| Qty | Unit Price (INR) | Ext. Price |
|---|---|---|
| 1 | ₹140 | ₹140 |
| 10 | — | — |
| 100 | — | — |
Product Specifications
Weight: 9 g
Rotation: 360° continuous
Torque: approx. 1.6 kg·cm
Operating Voltage: 4.8-6V
Control: PWM (1.5 ms = stop)
Note: No position control
Product Details
SG90 9g micro servo modified for 360° continuous rotation – PWM sets speed and direction instead of position, ideal for small wheeled robots.
Key Features
- Continuous 360° rotation in both directions
- Speed and direction controlled by PWM pulse width
- Same size and connector as the standard SG90
- Supplied with servo horns and screws
Typical Applications
- Small robot drive wheels
- Rotating displays and turntables
- Winches and conveyor demos
